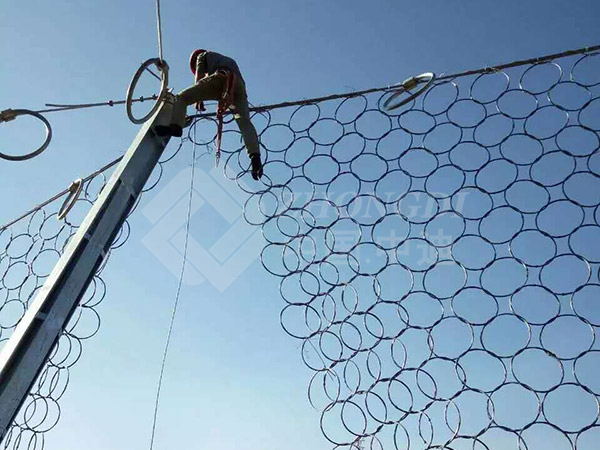

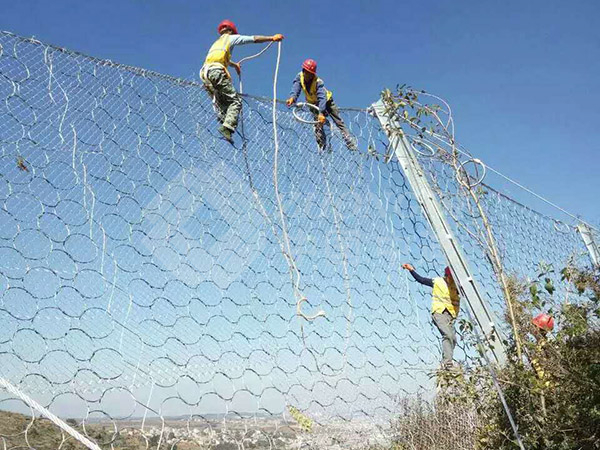

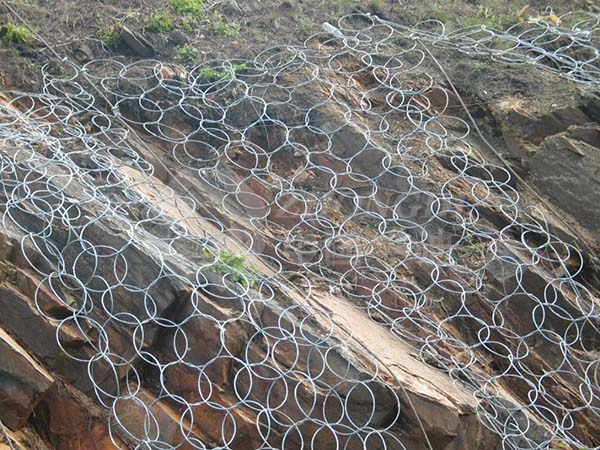

The Flexible Ring Net Barrier is a passive protection system that features a series of linked rings that form an extremely strong network to protect areas from falling rocks and landslides. These protection nettings are installed around construction sites and other facilities near slopes.
| Common ring network structure configuration and protection features (consistent with railway industry standard: TB / T 3089-2004 and "The People's Republic of China Communication Industry Standard: JT/T528-2004) | |||
| Model | Grid | Configurations | Main protection |
| RX I-025 (Ring Network) | R5/3/300 | Supported by steel columns + rope + system + suture anchor rope | Wit RX-025 |
| RX I-050 (Ring Network) | R7/3/300 | With RX I-025 | RX-050 |
| RX I-075 (common-type ring network) | R7/3/300 | With RX-025 | RX-075 |
| RX I-100 (Ring Network) | R9/3/300 | With the RX-025 | Within the intercept falling rock impact can 1000kj |
| RX I-150 (Ring Network) | R12/3/300 | With RX-025 | Within the intercept falling rock impact can 1500kj |
| RX I-200 (Ring Network) | R19/3/300 | With RX-025 | Within the intercept falling rock impact can 2000kj |
Note
1. the table models behind the figures represent the ring fence of
the energy absorption capacity; such as "050" indicates that the
maximum energy absorption capacity of the system 500kj, "150"
indicates that the system maximum energy absorption capacity of
1500kj, and so on.
2. Ring network for more than flexible protection system "major components and characteristics of the" If your design does not fully consistent with the department, the company can design according to your processing and manufacturing requirements.
3. Product quality standards are in line with "The People's Republic of China Railway Industry Standard: TB / T 3089-2004 "and" The People's Republic of China Communication Industry Standard JT/T528-2004 "
