Rockfall Barrier
Landslide Barrier / Debris Flow Barrier / Avalance Prevention Barrier / Slopes Stabilization System / Rockslopes Safety Barrier / Engineering Protection Mesh

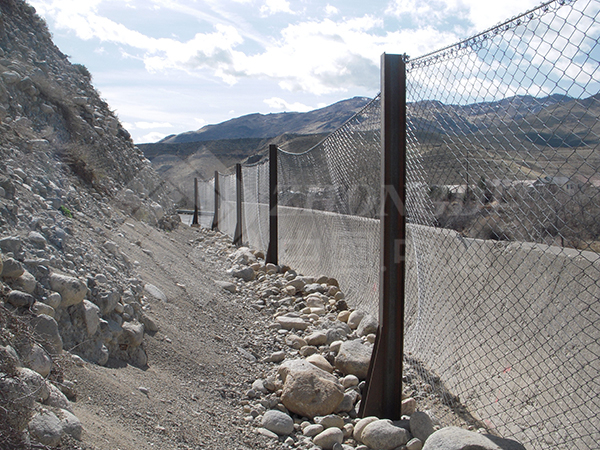

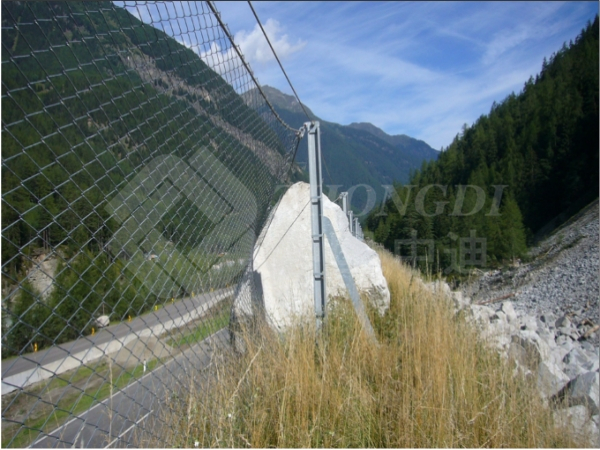

Rockfall barrier system is installed bottom of the mountain or slope to reduce and block the rockfalls and stones. When the stones, rocks, snows are falling down the mountain or slopes, the passive rockfall barrier system can reduce the impact of the rockfalls and protect the people and properties' safety.
Main types of Rockfall barrier systems are including: Steel wire rope net, Steel ring net and High tensile steel mesh.
Steel Wire Rope Net. steel wire rope net can not only used for active rockfall barrier system, but also the passive rockfall barrier system. It is mainly composed of steel wire rope net, decompression rings, supporting rope, sewing rope and steel column. It has high tensile strength and can block the rockfalls within 750 kJ.
Steel Wire Ring Net. Steel ring net is made of high quality hot dipped galvanized steel wire into circles. Different circle quantity have different block capacity. The steel ring net can block the rockfalls within 2000 kJ. Steel ring net system is commonly made of steel ring net, supporting rope, anchor rope, sewing rope and metal column.
High Tensile Steel Wire Mesh. High tensile steel mesh is made of high tensile strength steel wire 3.0mm 4.0mm or 2.0mm, with the tensile strength ≥1,770N/mm2, normally the tecco mesh specifications are including G65/3 G65/4 G80/4 G45/2 G/40/2，knotted ends ≥1.5 laps，And with anchors the high tensile steel wire mesh covers over the slope tension and firmly.
|
Popular models of Rockfall barrier system |
||||||
|
Model |
Net size |
Supporting rope |
Upper anchor rope |
Anchor rope |
Sewing rope |
Loading capacity |
|
RX-025 |
Wire rope net: |
12 mm double steel wire rope. |
16 mm single steel wire rope. |
12 mm single steel wire rope |
8 mm |
≤ 250 kJ |
|
RX-050 |
Wire rope net: |
16 mm double steel wire rope. |
14 mm single steel wire rope. |
16 mm single steel wire rope |
8 mm |
≤ 500 kJ |
|
RX-075 |
Wire rope net: |
18 mm double steel wire rope. |
18 mm single steel wire rope. |
18 mm single steel wire rope |
8 mm |
≤ 750 kJ |
|
RXI-025 |
Steel ring net: |
18 mm single steel wire rope |
16 mm single steel wire rope |
16 mm single steel wire rope |
8 mm |
≤ 250 kJ |
|
RXI-050 |
Steel ring net: |
22 mm single steel wire rope |
18 mm single steel wire rope |
18 mm single steel wire rope |
8 mm |
≤ 500 kJ |
|
RXI-075 |
Steel ring net: |
16 mm double steel wire rope. |
14 mm single steel wire rope. |
14 mm single steel wire rope |
8 mm |
≤ 750 kJ |
|
RXI-100 |
Steel ring net: |
18 mm double steel wire rope. |
16 mm single steel wire rope. |
16 mm single steel wire rope |
12 mm |
≤ 1000 kJ |
|
RXI-150 |
Steel ring net: |
22 mm double steel wire rope. |
18 mm single steel wire rope. |
18 mm single steel wire rope |
12 mm |
≤ 1500 kJ |
|
RXI-200 |
Steel ring net: |
18 mm double steel wire rope. |
18 mm single steel wire rope. |
18 mm single steel wire rope |
14 mm |
≤ 2000 kJ |
Features of Rockfall Barrier System
High loading capacity.
High flexibility.
Uniform distribution of the power.
Excellent buffering performance.
Corrosion and rust resistance.
Durable and long service life.
Different types for choice.
